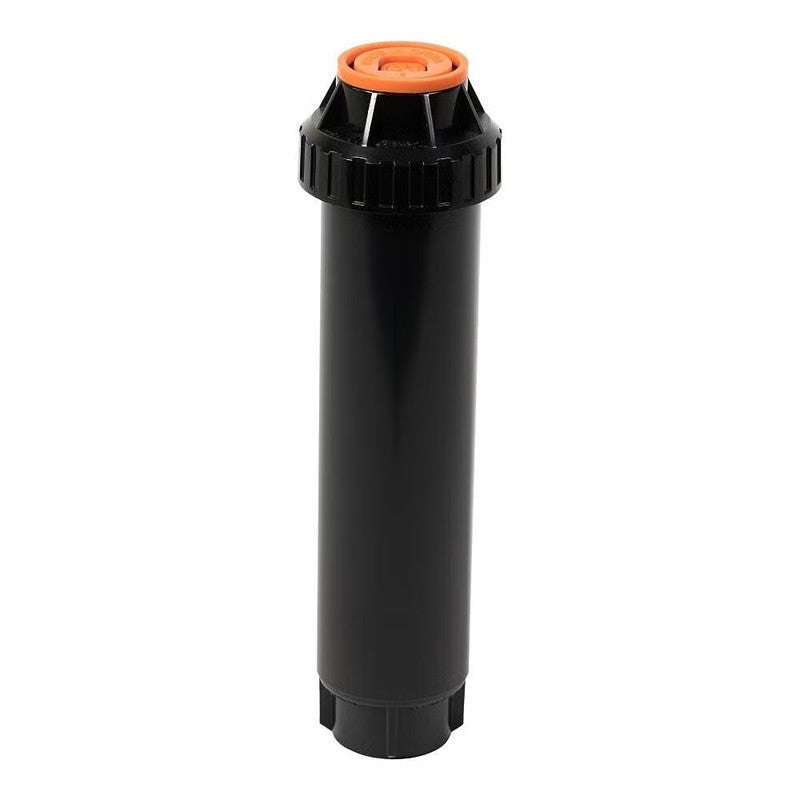

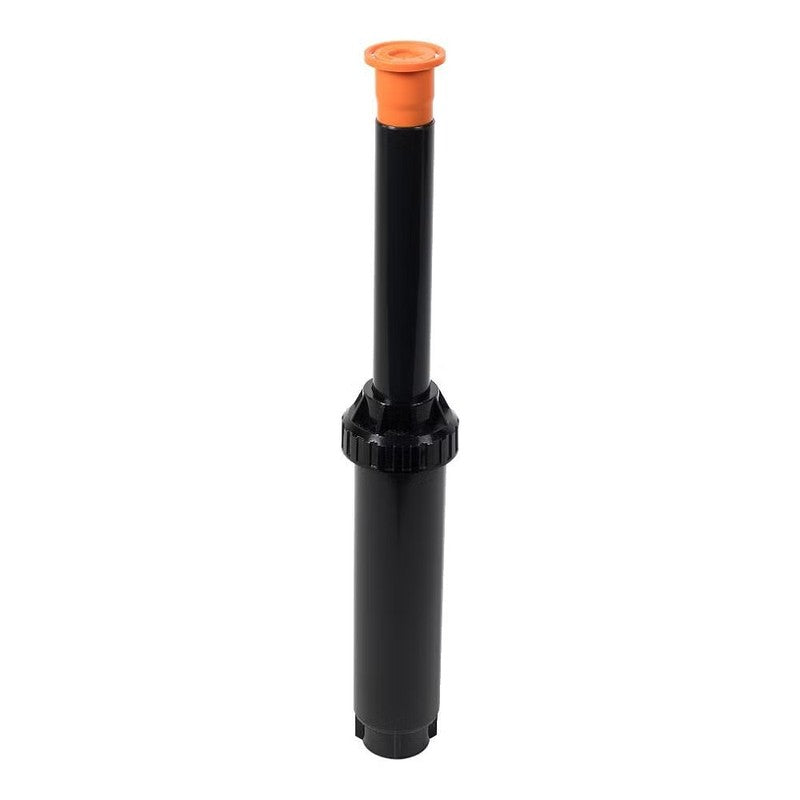

RAIN BIRD US-400 4" UNISPRAY BODY

Compact and reliable spray heads for any application. The UNI-Spray™ accepts all Rain Bird nozzles, including MPR, VAN and U-Series, making it an excellent choice for watering standard and irregular-shaped turf and shrub areas.

For added convenience, these reliable, compact spray heads can be shipped with or without pre-installed Variable Arc Nozzles (VANs) or High Efficiency Variable Arc Nozzles (HE-VAN) that are adjustable from 0° to 360° full-circle operation, saving hours of installation time, effort, and money.

Features

• Small exposed cover makes the unit virtually invisible for more attractive landscapes
• Constructed of durable materials including corrosion resistant stainless steel, assuring long product life even in high pressure or surge conditions
• Pressure-activated wiper seal prevents excessive flow-by and water waste and keeps debris from entering upon retraction
• Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
• Three-year trade warranty

Specifications

• Pressure: 15 to 70 psi (1.0 to 4.8 bar)
• Optimum pressure: 30 psi (2.1 bar)
• Adjustable nozzle arc range: 0° - 360°
• Flow-by: 0 at 10 psi (0.75 bar) or greater

Dimensions

• 1/2" (15/21) NPT female threaded inlet
• Body Height: 5 7/8" (14.9 cm)
• Exposed Surface Diameter: 1 1/4" (3.2 cm)
