Rain Bird

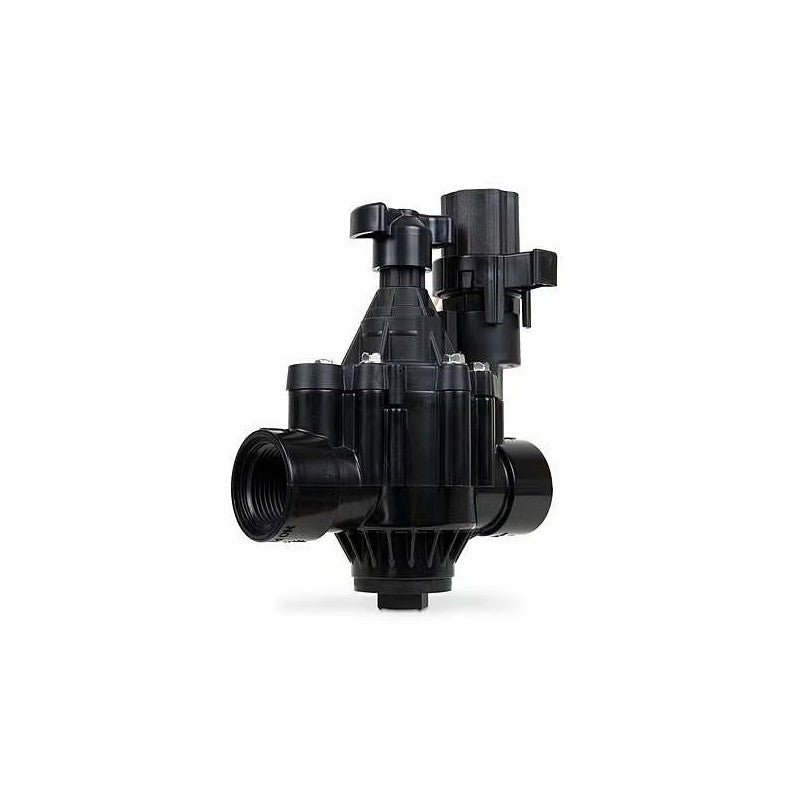

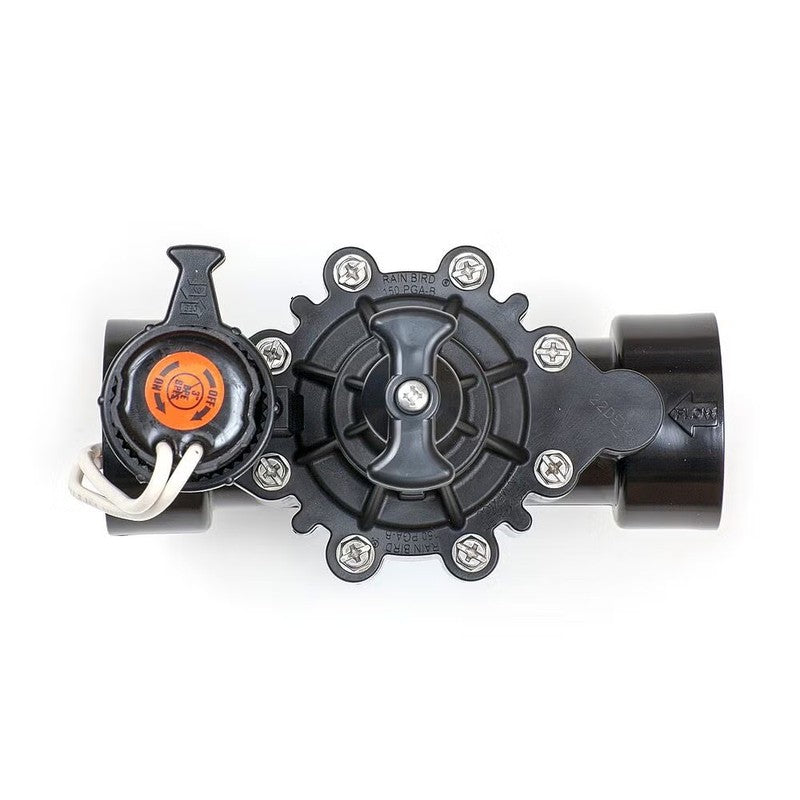

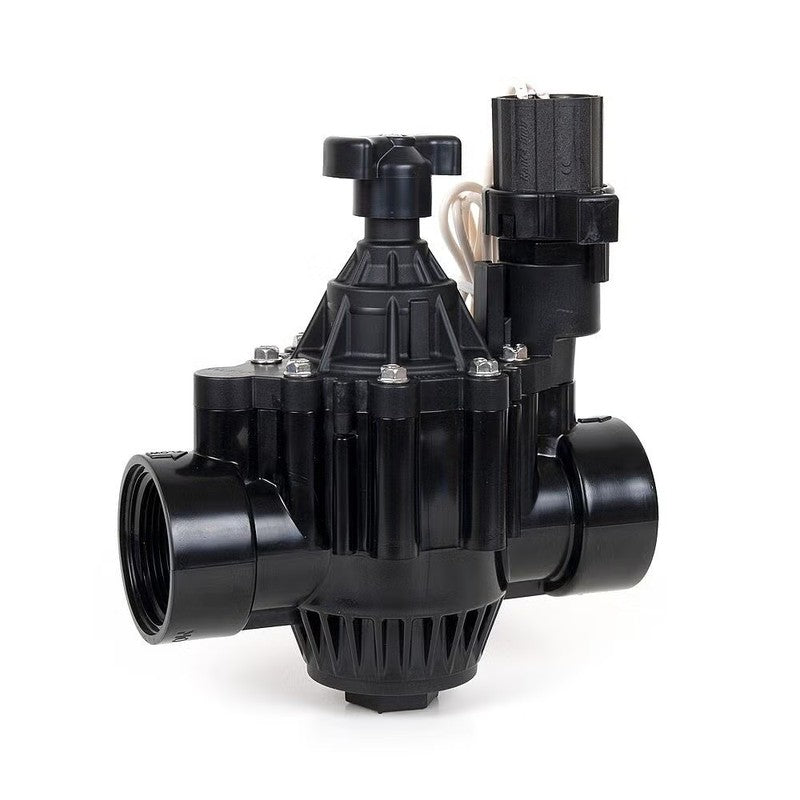

RAIN BIRD 150PGA 40MM ELEC VALVE

RAIN BIRD 150PGA 40MM ELEC VALVE

Regular price R 1,744.20 ZAR
Regular price Sale price R 1,744.20 ZAR
Sale Sold out
Quantity

Built for high-end residential and light commercial applications, Rain Bird PGA series valves are the toughest, most reliable valves in their class. Proven to perform at the highest level even under harsh temperatures and intense pressure. Backed by a best-in-class three-year trade warranty.

The PGA valve maintains a strong, worry-free seal between the body and bonnet, no matter the conditions. Multi-drive screws make servicing simple with flathead, Phillips or hexagonal options.

Features

  • Water-tight seal between body and bonnet for extreme conditions
  • Robust construction for quiet performance
  • Filtered pilot flow to resist debris and clogging
  • Slow closing to prevent water hammer
  • Accepts latching solenoid for battery-operated controllers
  • Multi-drive screws (Phillips, flathead, hexagonal) for easy maintenance
  • Manual internal bleed for pressure regulator adjustment
  • Accommodates optional field-installed PRS-D pressure regulating dial
  • Three-year trade warranty

Specifications

  • Pressure: 15 to 150 psi (1.04 to 10.4 bar)
  • Flow: 2 to 150 gpm (0.45 to 34.05 m³/h)
  • Water temperature: Up to 110°F (43°C)
  • Solenoid: 24VAC 50/60Hz — 0.41A inrush, 0.14A holding

Dimensions

  • 150-PGA: 8" (20.3 cm) H x 6¾" (17.2 cm) L x 3½" (8.9 cm) W

📄 Download Sell Sheet (PDF)
