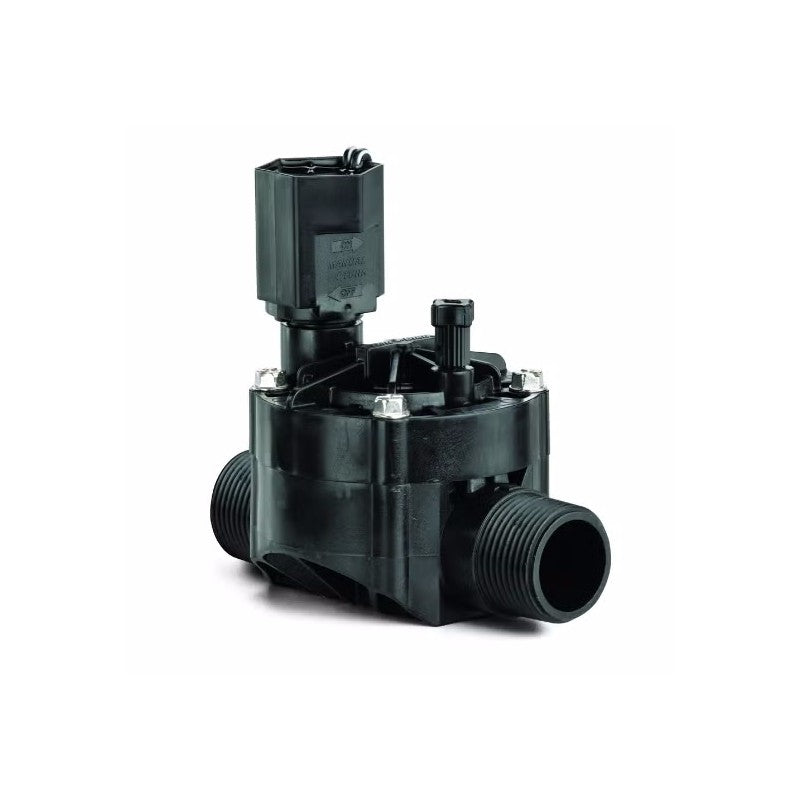

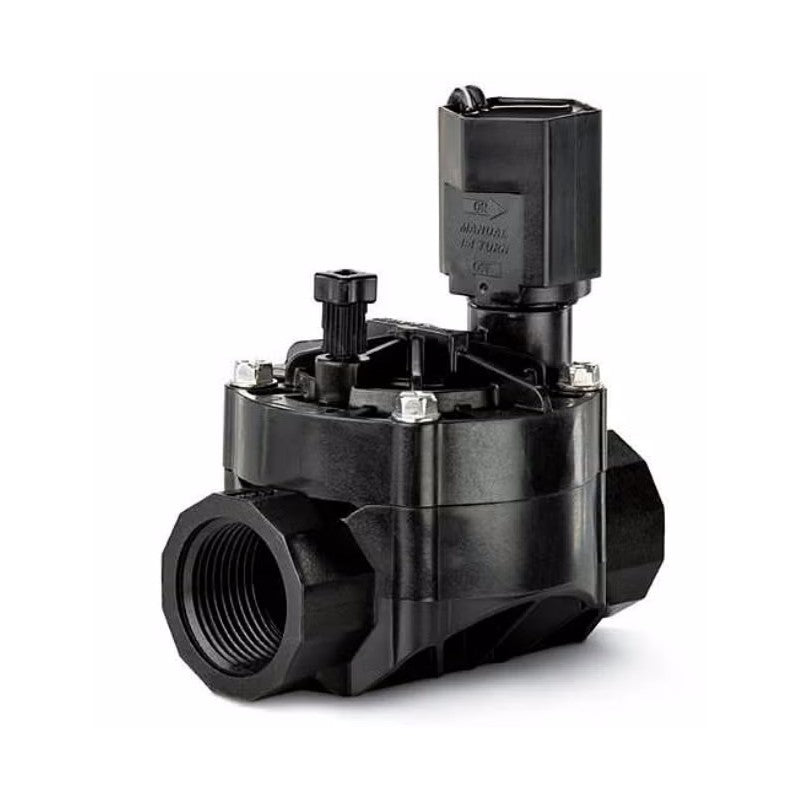

RAIN BIRD 100HV 25MM ELEC VALVE

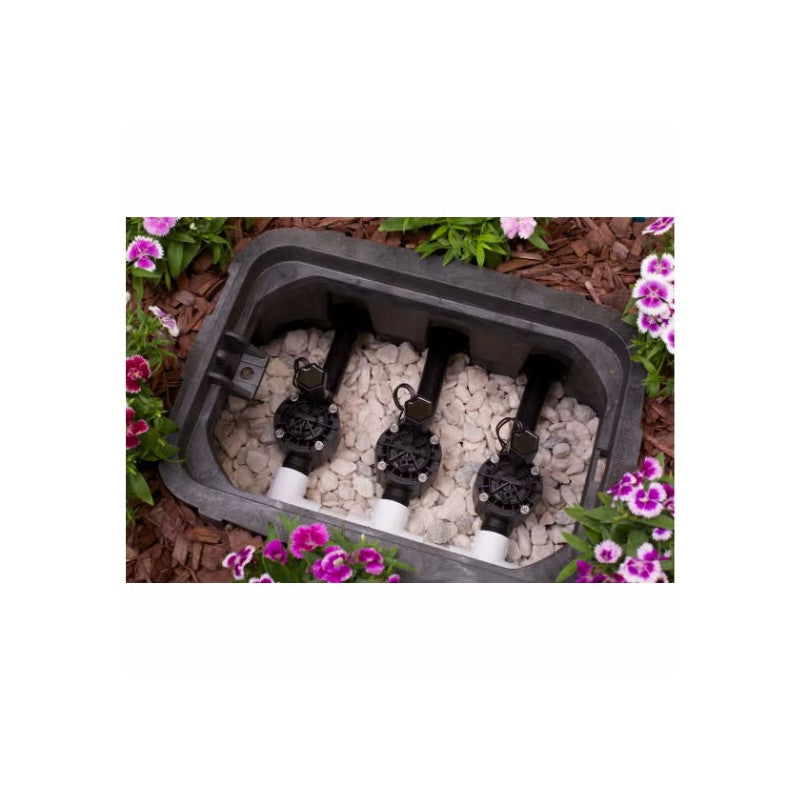

Outstanding performance. Unmatched durability. Eccentric diaphragm for smooth closing, less water hammer. Compact design, 6.45 cm spin radius for tight installations.

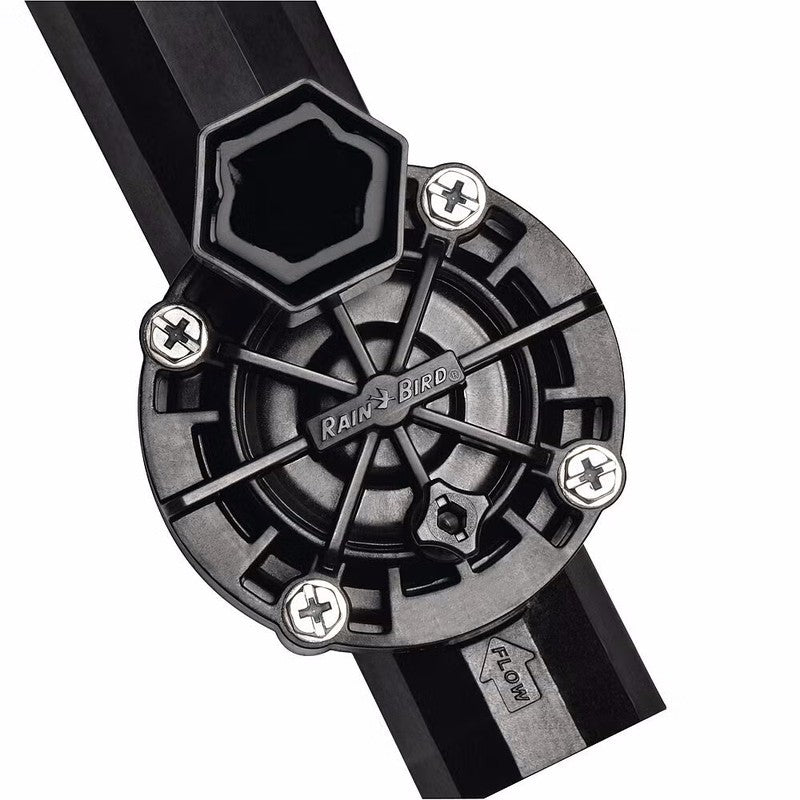

Glass-filled polypropylene body for strength. Your choice of tools to open valve (nut driver, Phillips head, slotted head). Four screws for quick access to diaphragm.

Features

• 25mm (1") inline electric irrigation valve
• Double-filtered pilot-flow system for dirt resistance
• Buna-N diaphragm with self-cleaning pilot filter
• 24VAC low-power solenoid operation
• External bleed screw for manual flushing during installation
• Internal bleed for manual operation without water spray
• Compatible with standard irrigation controllers
• Accepts Rain Bird latching solenoids for battery controllers

Specifications

• Flow: 0.05–6.82 m³/h (0.8–113 L/min)
• Pressure: 1.0–10.3 bar (15–150 psi)
• Water temperature: Up to 43.3°C (110°F)
• Electrical: 24 VAC (50/60 Hz)
• Inrush current: 0.290A at 60 Hz
• Holding current: 0.091A at 60 Hz

Dimensions

• Height: 11.4 cm | Length: 11.1 cm | Width: 8.4 cm
