K-RAIN SUPER PRO SHRUB ROTOR 3/4 INCH

A 3/4-inch shrub-style gear-driven rotor sprinkler designed for medium-to-large landscape irrigation, featuring Intelligent Flow Technology®, adjustable arc control, and above-ground shrub installation.

The K-Rain SuperPro Shrub Rotor is a professional-grade 3/4-inch gear-driven sprinkler designed for residential and commercial irrigation systems where an above-ground shrub-style installation is required instead of a pop-up body.

Unlike standard pop-up rotors, the shrub version mounts above grade on a fixed riser, making it ideal for dense shrub beds, raised planters, slopes, and landscaped areas where taller vegetation could block a standard pop-up sprinkler.

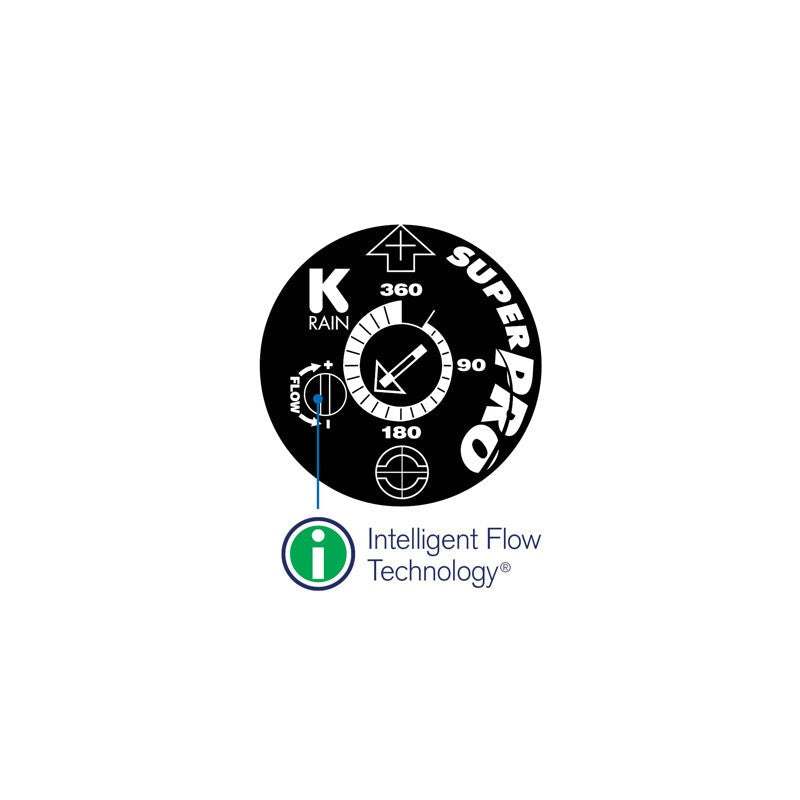

The SuperPro Shrub Rotor uses K-Rain's patented Intelligent Flow Technology®, which proportionally reduces both spray distance and water flow simultaneously. This allows installers to fine-tune coverage while maintaining matched precipitation and reducing water waste.

The rotor supports adjustable arc settings from approximately 40° to continuous 360° rotation and includes K-Rain's patented Easy Arc Set system for quick wet or dry adjustment and an Arc Memory Clutch that protects internal gears if the turret is forced out of alignment.

Features

• 3/4-inch shrub-style gear-driven rotor sprinkler
• Above-ground shrub installation design
• Intelligent Flow Technology® reduces distance and flow together
• Adjustable arc: 40°–360° continuous rotation
• Patented Easy Arc Set adjustment system
• Arc Memory Clutch protects internal gear mechanism
• Patented reversing gear-drive technology
• Includes interchangeable standard and low-angle nozzles
• Heavy-duty rubber cover improves durability
• Stainless-steel spring components for long service life
• Designed for residential and commercial landscape irrigation
• Ideal for shrub beds, raised planters, and slopes

Specifications

• Model: K-Rain SuperPro Shrub Rotor (10003-SH)
• Inlet size: 3/4" threaded NPT connection
• Arc adjustment: 40° – continuous 360°
• Radius: 26 ft – 49 ft (≈7.9 m – 14.9 m)
• Pressure range: 20 – 70 PSI (≈1.4 – 4.8 bar)
• Flow range: 0.5 – 9.5 GPM (≈1.9 – 36 L/min)
• Nozzle set: 8 standard nozzles + 4 low-angle nozzles included
• Recommended spacing: 28 ft – 44 ft (≈8.5 m – 13.4 m)
• Application: Shrub beds, commercial landscaping, raised planting zones
• Construction: UV-resistant engineering-grade plastic with stainless-steel components

Dimensions

• Installation type: Fixed shrub riser installation (non pop-up)
• Connection size: 3/4-inch threaded base
• Overall body style: Above-ground rotor housing
• Recommended mounting: Installed on fixed risers above vegetation height
• Housing: Heavy-duty commercial rotor body with rubber debris cap
