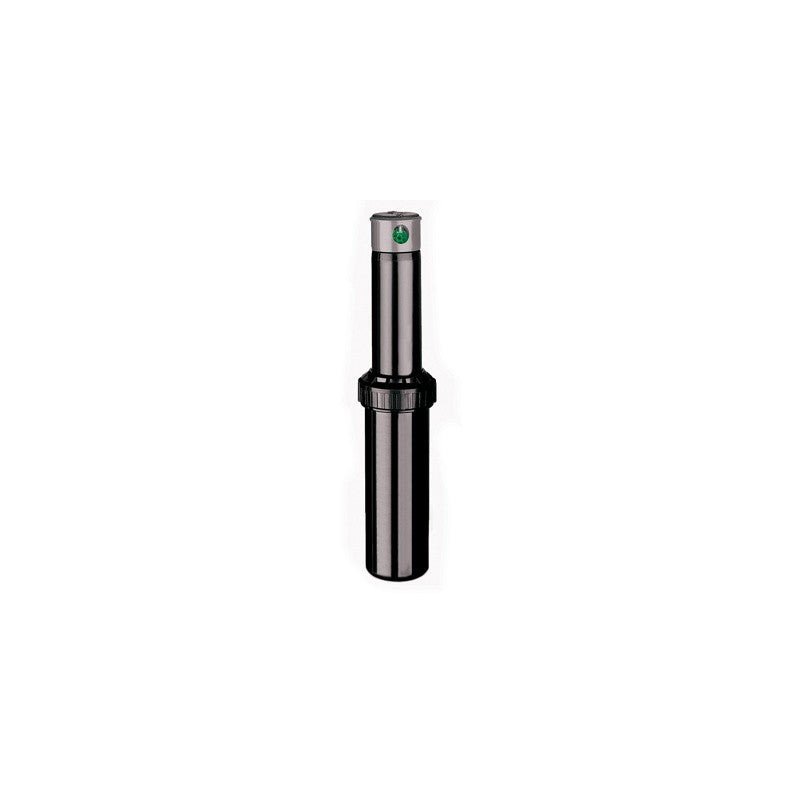

K-RAIN SUPER PRO ROTOR 3/4 INCH

A professional 3/4-inch gear-driven rotor sprinkler with Intelligent Flow Technology®, designed for residential and commercial irrigation with adjustable arc, matched precipitation, and water-saving flow control.

The K-Rain SuperPro Rotor is a premium 3/4-inch gear-driven sprinkler engineered for residential and commercial landscape irrigation. It is designed for medium-to-large turf areas where long-range, uniform water distribution and advanced adjustment features are required.

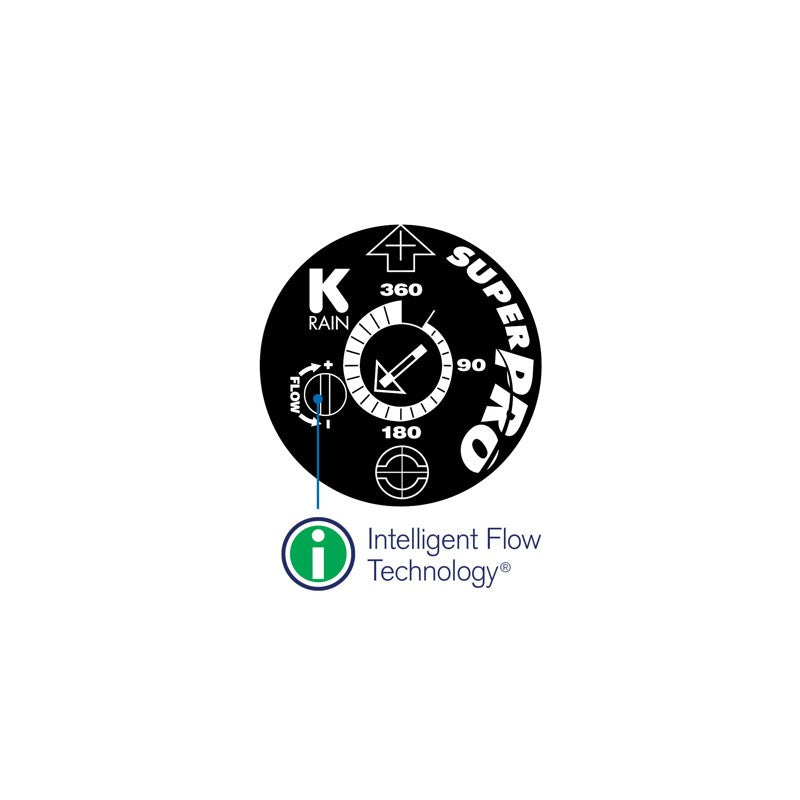

One of the defining features of the SuperPro is K-Rain's patented Intelligent Flow Technology®, which allows installers to proportionally reduce both spray distance and water flow directly at the sprinkler head without changing nozzles. This improves matched precipitation and can reduce water consumption by up to 30%.

The SuperPro uses a patented reversing gear-drive mechanism combined with an Arc Memory Clutch, which protects the internal gears from damage if the turret is forced out of alignment and automatically returns the rotor to its original setting.

The rotor supports adjustable arc settings from approximately 40° to continuous 360° rotation, allowing use in corners, side strips, or full-circle lawn applications.

Features

• 3/4-inch gear-driven rotor sprinkler
• Intelligent Flow Technology® for proportional flow and distance adjustment
• Water savings up to ~30% through flow control
• Adjustable arc: 40°–360° continuous rotation
• Patented Easy Arc Set for fast wet or dry adjustment
• Arc Memory Clutch protects internal gear mechanism
• Patented reversing gear-drive system
• Ratcheting riser for easy left-start alignment
• Rubber cover seals out dirt and debris
• Optional check valve prevents low-head drainage
• Stainless-steel spring for long service life
• Suitable for residential and commercial turf irrigation

Specifications

• Model: K-Rain SuperPro Rotor (10003 series)
• Inlet size: 3/4" threaded NPT connection
• Arc adjustment range: 40° – continuous 360°
• Radius: 26 ft – 49 ft (≈7.9 m – 14.9 m)
• Flow range: 0.5 – 9.5 GPM (≈1.9 – 36 L/min)
• Pressure range: 20 – 70 PSI (≈1.4 – 4.8 bar)
• Pop-up height: 4 inch riser (standard model)
• Recommended spacing: 28 ft – 44 ft (≈8.5 m – 13.4 m)
• Construction: UV-resistant engineering-grade plastic with stainless-steel spring
• Application: Residential lawns, parks, commercial landscapes

Dimensions

• Overall height (retracted): approx. 7.5 inch (≈19 cm)
• Pop-up riser height: 4 inch (≈10 cm)
• Body diameter: approx. 2.875 inch (≈7.3 cm)
• Installation type: standard rotor trench installation
• Above-ground profile: low-profile rubber cap when retracted
