K-RAIN SPRAYER ROTATE RPS SELECT 3/4 ROTOR

A professional 3/4-inch gear-driven rotor sprinkler with built-in selectable nozzles, designed for residential and light commercial irrigation with matched precipitation and retrofit compatibility.

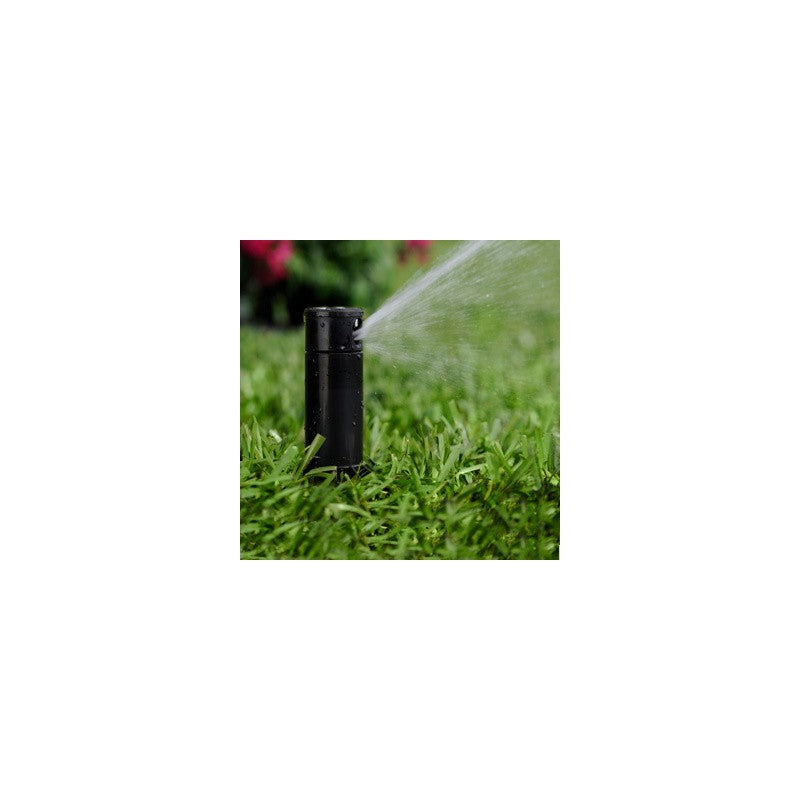

The K-Rain RPS Select 3/4" Rotor is a professional gear-driven rotary sprinkler designed for residential and light commercial irrigation systems. It is based on the proven RPS75 platform but adds a patented built-in selectable nozzle system, allowing installers to quickly match nozzle size to arc settings without carrying separate nozzle trees.

The RPS Select is engineered to simplify matched precipitation, ensuring all sprinklers within a zone apply water at a consistent rate regardless of arc setting. This helps prevent overwatering and dry spots commonly caused by incorrect nozzle selection.

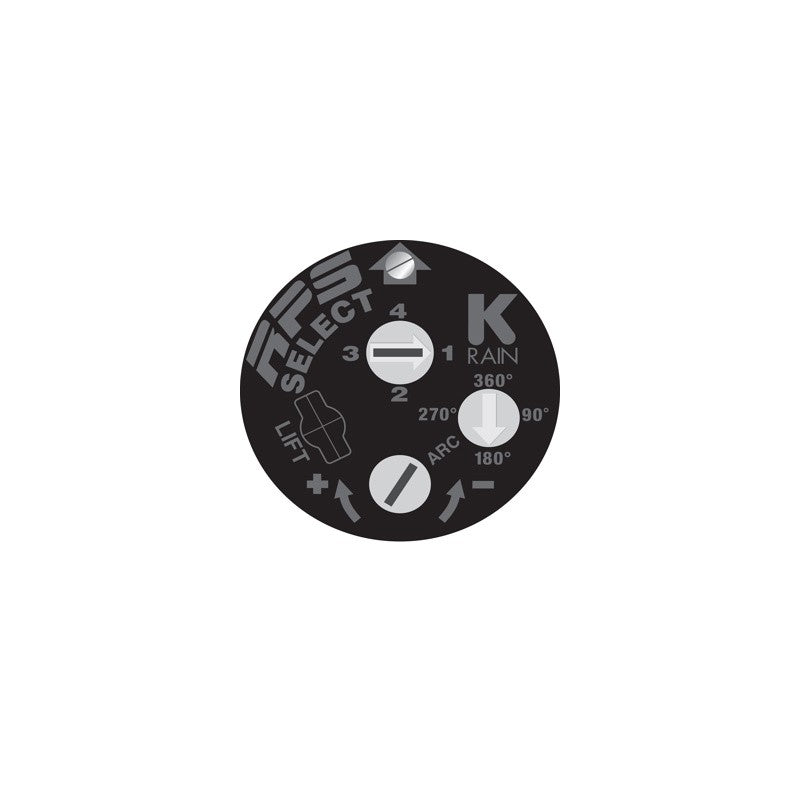

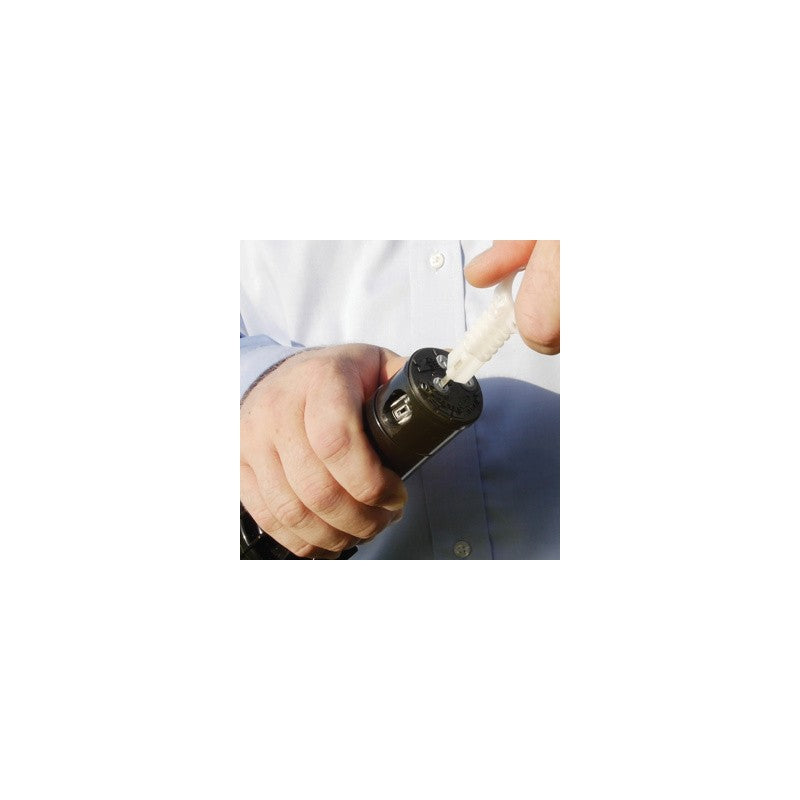

The rotor includes four built-in selectable nozzles (#1–#4) that can be changed directly from the top using a screwdriver. It also features top-access adjustment for arc setting and flow shutoff, allowing adjustments while the system is running.

The sprinkler supports adjustable arc settings from approximately 40° to 360°, including full-circle operation. The universal riser assembly allows the rotor internals to fit into existing Hunter® PGP® and PGP Ultra cans, making it useful for retrofit irrigation upgrades.

Features

• 3/4-inch gear-driven rotor sprinkler
• Four built-in selectable nozzles (#1–#4)
• Matched precipitation for uniform watering
• Adjustable arc: approx. 40°–360°
• Top-access arc adjustment (wet or dry adjustment)
• Integrated flow shutoff system
• Water-lubricated gear-drive mechanism
• Precision-engineered nozzles for water efficiency
• Universal riser assembly fits Hunter® PGP® cans
• Standard rubber cover for durability
• Designed for residential and light commercial irrigation

Specifications

• Model: K-Rain RPS Select Rotor Sprinkler (Item No. 60003)
• Inlet size: 3/4" threaded rotor connection
• Arc range: 40° – 360° adjustable
• Nozzle system: 4 built-in selectable nozzles
• Adjustment type: Top arc set + flow shutoff
• Mechanism: Water-lubricated gear-drive rotor
• Compatibility: Fits Hunter® PGP® / PGP Ultra cans
• Application: Residential lawns, parks, light commercial turf
• Construction: UV-resistant engineering-grade plastic housing
• Optional variants: Check valve version (60003-CV), shrub version (60003-SH)

Dimensions

• Pop-up height: standard rotor riser height (varies by model version)
• Body size: standard 3/4-inch rotor housing footprint
• Installation depth: rotor-style trench installation
• Above-ground profile: low-profile rubber cap when retracted
• Retrofit fitment: compatible with standard 3/4" rotor body layouts
