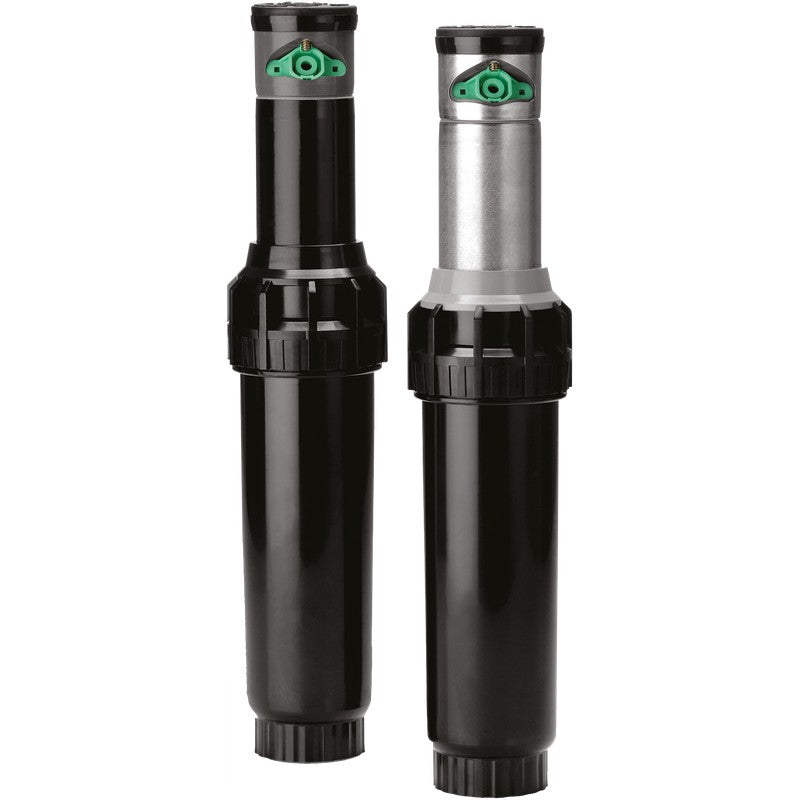

K-RAIN SPRAYER ROTATE 1IN PRO SPORT STAINLESS

A premium 1-inch stainless steel gear-driven rotor sprinkler designed for sports turf and large commercial irrigation, delivering long-range coverage, high durability, and superior water distribution.

The K-Rain Pro Sport Stainless Rotor is a professional-grade 1-inch gear-driven sprinkler specifically engineered for sports fields, golf courses, parks, and large commercial turf applications. This model features a stainless steel riser/turret assembly, providing enhanced durability, wear resistance, and long-term reliability in high-use environments.

The rotor uses a patented reversing gear-drive system that provides smooth oscillating rotation with both part-circle and continuous full-circle operation, adjustable from approximately 40° to 360°. It is designed for long-range irrigation and supports wide head spacing commonly used in sports turf layouts.

One of the defining features of the Pro Sport Stainless model is its triple-nozzle configuration, consisting of one primary long-range nozzle and two secondary close-in nozzles. This design improves near-head watering and provides highly uniform coverage across the entire radius.

The sprinkler also includes K-Rain's Arc Memory Clutch, which protects the internal gear drive if the turret is forced out of alignment and automatically returns the rotor to its original arc setting. A heavy-duty rubber cover and mud guard improve durability and allow below-grade installation in demanding turf conditions.

Features

• Premium stainless steel riser/turret construction
• 1" BSP threaded commercial rotor sprinkler
• Designed for sports turf and commercial irrigation
• Triple-nozzle system for superior water distribution
• Adjustable arc: approx. 40°–360° + continuous rotation
• Patented reversing gear-drive mechanism
• Arc Memory Clutch protects internal gears from damage
• Top arc adjustment for wet or dry setup
• Heavy-duty rubber cover and mud guard
• Factory-installed check valve to prevent low-head drainage
• Long-range high-uniformity irrigation performance

Specifications

• Model: K-Rain ProSport Stainless Steel Rotor
• Inlet size: 1" BSP threaded connection
• Radius: approx. 13 m – 23.5 m (43–77 ft)
• Operating pressure: approx. 2.8 – 6.2 bar (40–90 PSI depending on nozzle)
• Flow rate: approx. 19 – 123 L/min
• Arc adjustment: 40° – 360° + continuous full circle
• Nozzle system: Triple nozzle configuration
• Riser material: Stainless steel
• Application: Sports fields, golf courses, commercial landscapes

Dimensions

• Pop-up height: approx. 5 inch (≈12.5 cm) riser height
• Body type: Heavy-duty commercial rotor housing
• Installation depth: Deep rotor trench installation for sports turf systems
• Above-ground profile: Low-profile rubber cap when retracted
• Recommended spacing: approx. 13 m – 21 m head spacing
