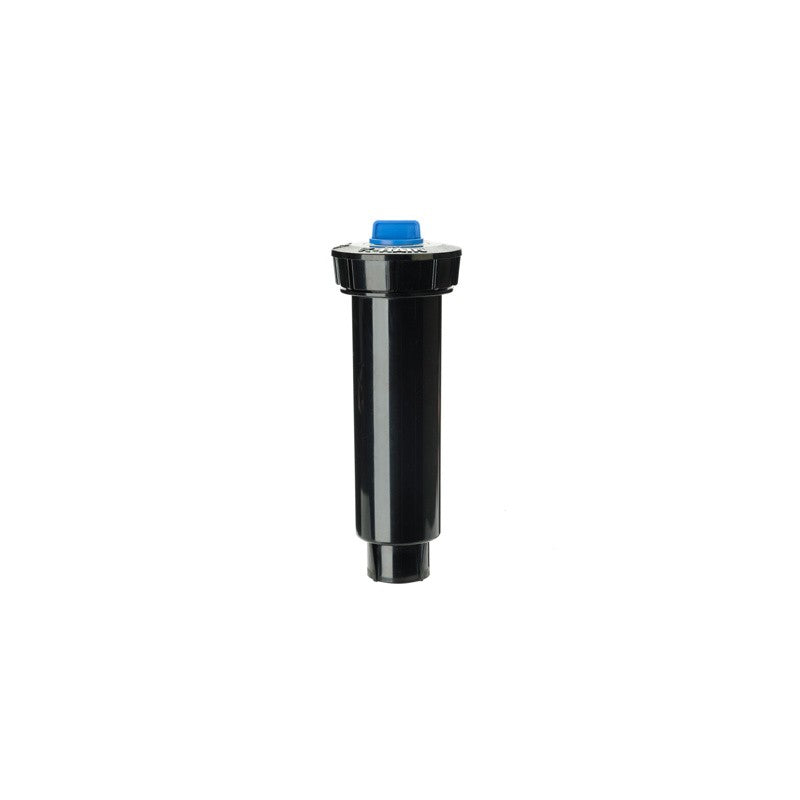

K-RAIN PRO-S SPRAY 4 INCH

A compact 4-inch pop-up spray sprinkler body designed for K-Rain nozzles, built for residential irrigation zones requiring low-profile installation and reliable spray performance.

The K-Rain Pro-S 4 inch Spray is a professional-grade pop-up sprinkler body used in residential and light commercial irrigation systems. It provides a 4-inch (≈10 cm) pop-up height, making it suitable for turf areas, lawns, and low vegetation zones where minimal obstruction is expected.

This spray body is designed to accept all standard female-thread spray nozzles, including fixed-pattern, adjustable, and rotary nozzle types. It features a rugged housing, a heavy-duty retraction spring, and a co-molded wiper seal to ensure reliable sealing and consistent pop-up operation even in dirty or low-pressure conditions.

Some versions include optional upgrades such as a pressure regulator (typically 30 or 40 PSI), check valve to prevent low-head drainage, and nozzle guard protection. The 4-inch model is one of the most widely used spray body sizes due to its versatility and simple installation depth.

K-Rain Pro-S sprays are engineered for durability and compatibility with standard irrigation fittings and are often used interchangeably with other major brand spray bodies.

Features

• 4-inch (10 cm) pop-up height for low vegetation irrigation
• Accepts all standard female-thread irrigation nozzles
• Heavy-duty retraction spring for reliable pop-up and retraction
• Co-molded wiper seal to reduce leaks and debris intrusion
• Optional pressure regulator (typically 30 or 40 PSI versions)
• Optional check valve to prevent low-head drainage
• Optional nozzle guard for protection against mower/trimmer damage
• UV-resistant, impact-resistant body construction
• Compatible with rotary, adjustable, and fixed-pattern nozzles

Specifications

• Model: K-Rain Pro-S 4" Pop-Up Spray Body
• Pop-up height: 4 in (≈10 cm)
• Inlet size: ½" FNPT (female threaded inlet)
• Operating pressure range: ~20–70 PSI (system dependent)
• Pressure regulation option: 30 PSI or 40 PSI
• Nozzle compatibility: Standard female-thread spray nozzles
• Material: UV-stabilized engineering-grade plastic
• Retraction: Heavy-duty stainless steel spring system
• Application: Residential and light commercial turf irrigation

Dimensions

• Pop-up height: 4 in (10 cm)
• Body designed for shallow installation in standard irrigation trenches
• Fits standard ½" spray riser assemblies
• Compact top diameter suitable for turf-level flush mounting
• Retracted height: flush with ground surface
