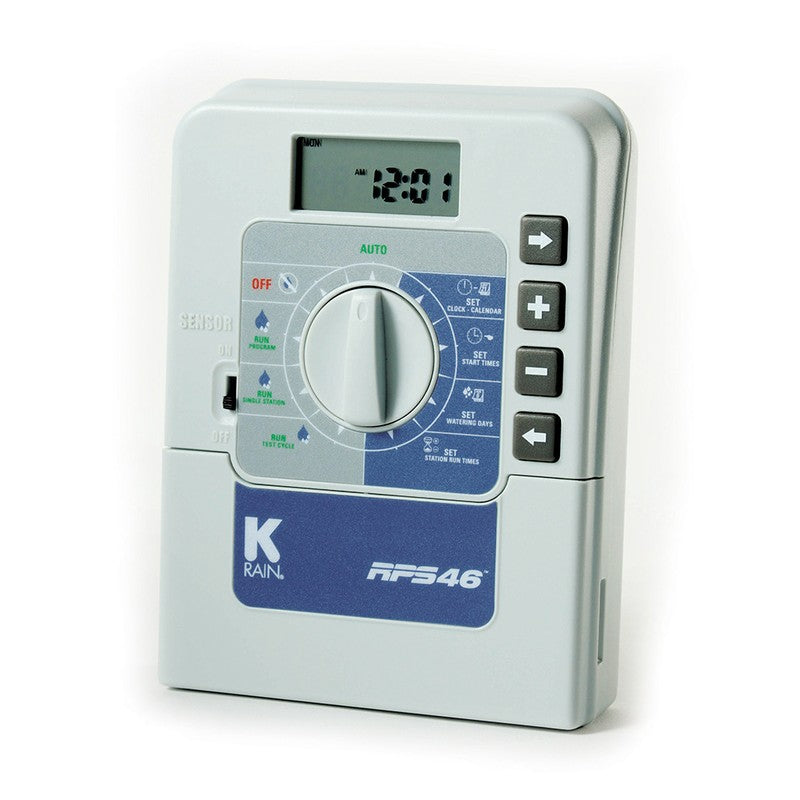

K-RAIN CONTROLLER INDOOR RPS46 4 STATION

A compact 4-station indoor irrigation controller designed for residential lawn irrigation, featuring flexible programming, seasonal adjustment, and rain sensor compatibility.

The K-Rain RPS 46 Indoor 4 Station Controller supports up to 4 irrigation stations with four fully independent programs for flexible scheduling. Features seasonal adjustment (10%–200%), rain sensor compatibility, and battery backup.

Features

• 4-station indoor irrigation controller
• 4 fully independent irrigation programs
• Up to 4 start times per program (max 16 starts per day)
• Seasonal adjustment from 10%–200%
• Rain sensor and rain/freeze sensor ready
• Flexible manual operation
• Battery backup preserves programming during power outages
• Heavy-duty 1.0 AMP transformer

Specifications

• Series: RPS 46
• Model: 3504-220
• Stations: 4
• Voltage Input: 220–240 VAC, 50/60Hz
• Power Output: 24 VAC, 1.0 AMP
• Programs: 4 independent programs
• Start Times: 4 per program
• Watering Options: 7-day calendar, interval, odd/even
• Backup Power: 9V alkaline battery memory backup

Dimensions

• Height: 5.75 in (146 mm)
• Width: 4.5 in (114 mm)
• Depth: 1.75 in (44 mm)
