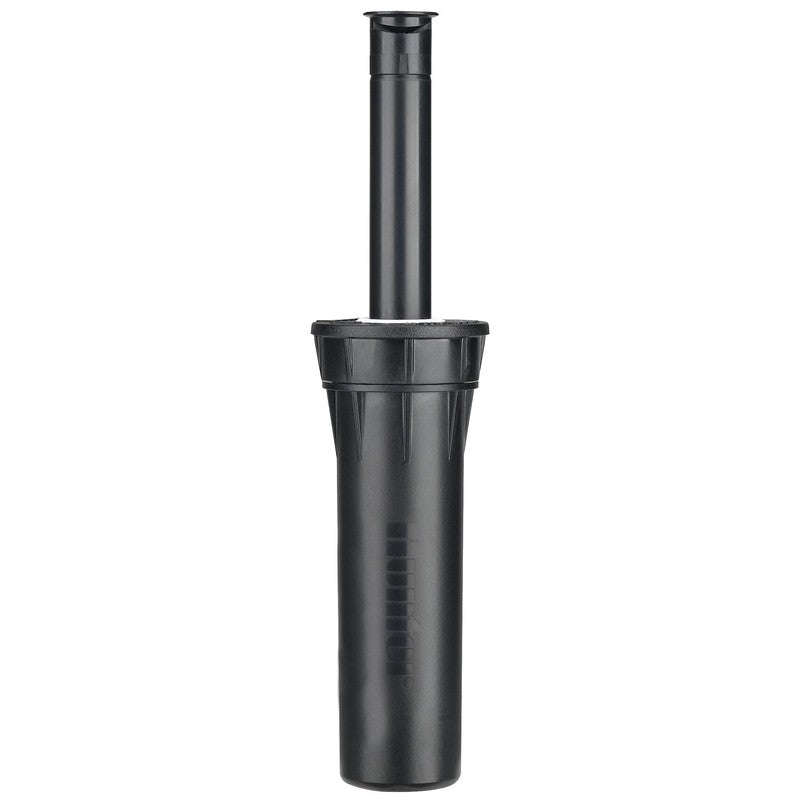

HUNTER PRO-SPRAY 4" POP-UP BODY

The Hunter Pro-Spray 4" Pop-Up Body is a heavy-duty spray sprinkler body designed for residential and commercial irrigation, offering reliable pop-up performance and compatibility with a wide range of spray nozzles.

The Hunter Pro-Spray 4" (PROS-04) is part of Hunter's Pro-Spray range, known as one of the strongest and most reliable spray body lines in irrigation. It is designed for turf and landscaped areas where consistent spray coverage is required.

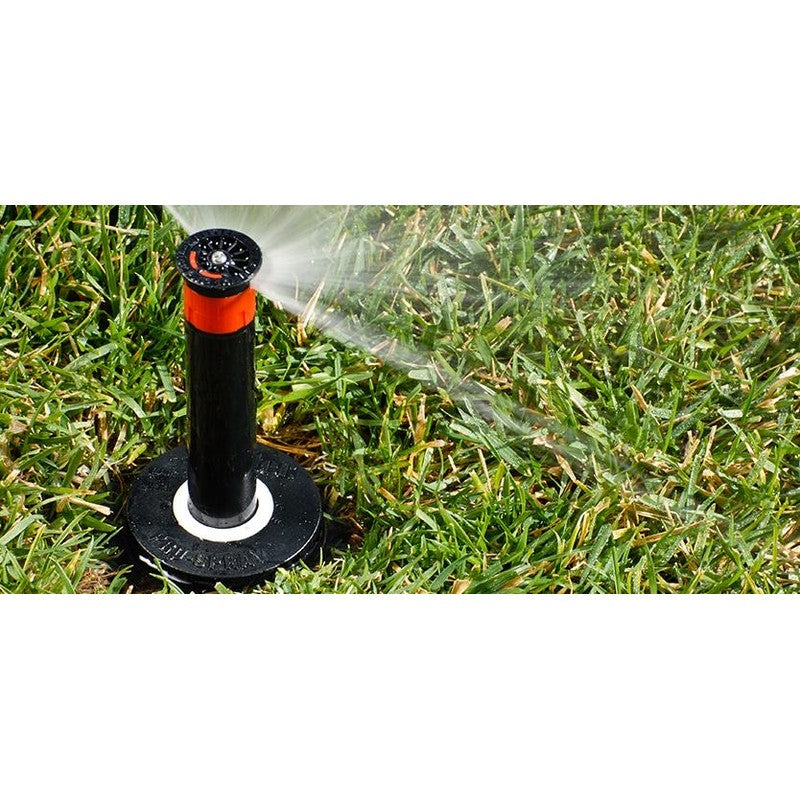

This 4-inch (10 cm) pop-up model rises above grass when in operation, ensuring proper water distribution, and retracts flush with the ground when not in use. It accepts all industry-standard female-thread nozzles, including fixed spray, adjustable, and MP Rotator nozzles.

The unit features a co-molded wiper seal that resists leaks and prevents debris from entering the body, along with a durable spring and cap design for long-term performance even in harsh conditions.

Features

• 4" (10 cm) pop-up height for turf applications
• Compatible with all female-thread spray nozzles (Hunter & standard)
• Co-molded wiper seal prevents leaks and debris entry
• Heavy-duty spring ensures reliable retraction
• Durable body and cap for long lifespan
• Flush plug included for easy system cleaning
• Optional check valve models prevent low-head drainage
• Available with pressure regulation (PRS) options

Specifications

• Model: PROS-04
• Pop-up height: 10 cm (4")
• Inlet size: ½" female thread
• Operating pressure: approx. 1.0 – 5.2 bar (depending on nozzle)
• Nozzle: Not included (sold separately)
• Compatibility: Fixed, adjustable, and MP Rotator nozzles
• Optional versions: PRS30/PRS40 (pressure regulated), CV (check valve)

Dimensions

• Overall height: 149.23 mm
• Pop-up height: 100 mm
• Diameter: 57.15 mm
• Exposed diameter: 57.15 mm
