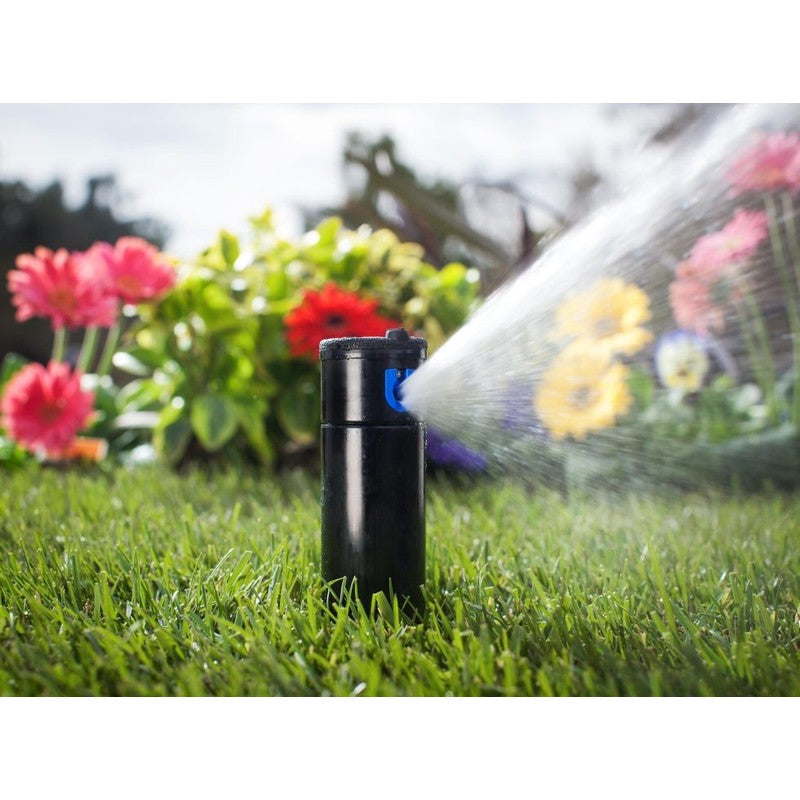

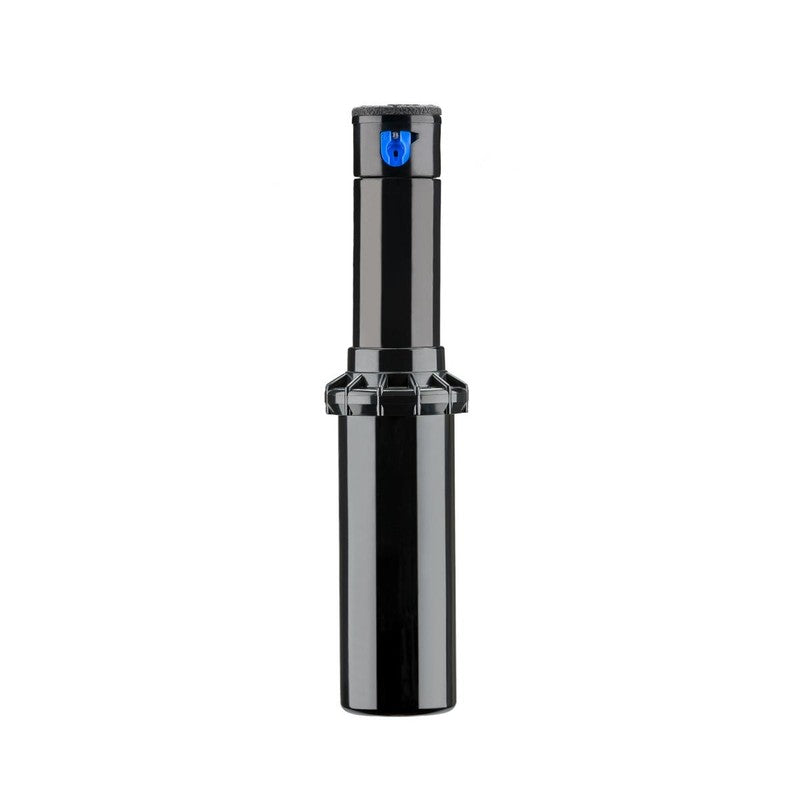

HUNTER PGP ULTRA ADJ/360 POP-UP

The Hunter PGP Ultra ADJ/360° Pop-Up Rotor is a high-performance gear-driven sprinkler designed for medium to large areas, offering adjustable arc coverage (50°–360°) with advanced durability and improved rotation control.

The Hunter PGP Ultra is an upgraded version of the classic PGP rotor, engineered with enhanced internal components and smarter functionality. Designed for residential and commercial landscapes, it provides consistent, even water distribution across medium to large turf areas.

This model features a part- and full-circle adjustment in one unit (50° to 360°), eliminating the need for separate full-circle heads. One of its standout features is the automatic arc return, which ensures the sprinkler returns to its original arc setting even if tampered with.

Built with a non-strippable drive mechanism, the PGP Ultra prevents internal damage when forced in the wrong direction, increasing its lifespan. It also includes a wide selection of nozzles, allowing flexibility in flow and radius to suit different irrigation needs.

Features

• Adjustable arc: 50° to 360° (part & full circle in one model)
• Automatic arc return resets to original settings
• Non-strippable drive mechanism prevents damage
• Gear-driven rotor for quiet, reliable operation

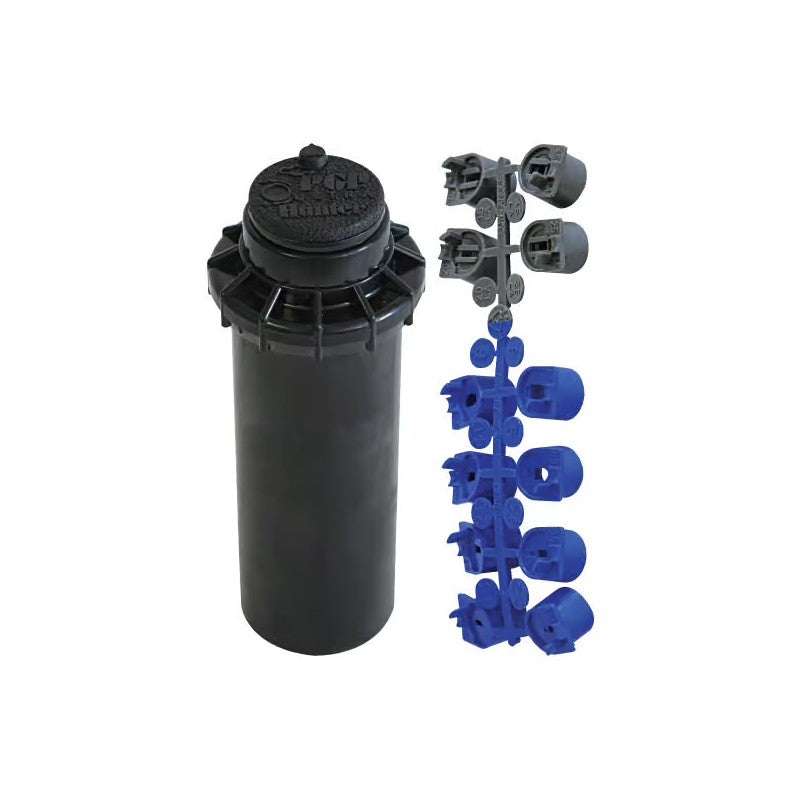

• Includes 8 standard + 4 low-angle nozzles
• Wide nozzle selection (up to 34 options)
• Through-the-top arc adjustment
• Debris-resistant design
• Suitable for residential & commercial use

Specifications

• Radius: 4.9 – 14.0 m
• Flow rate: 0.07 – 3.23 m³/hr (1.2 – 53.8 L/min)
• Arc range: 50° – 360°
• Inlet size: ¾" BSP
• Pressure range (recommended): ~1.7 – 4.5 bar
• Operating pressure: up to ~7.0 bar
• Nozzle rack included: 8 standard + 4 low-angle

Dimensions

• Pop-up height: 100 mm
• Overall height: ~19 cm
• Exposed diameter: ~4.5 cm
• Inlet: ¾" female thread
