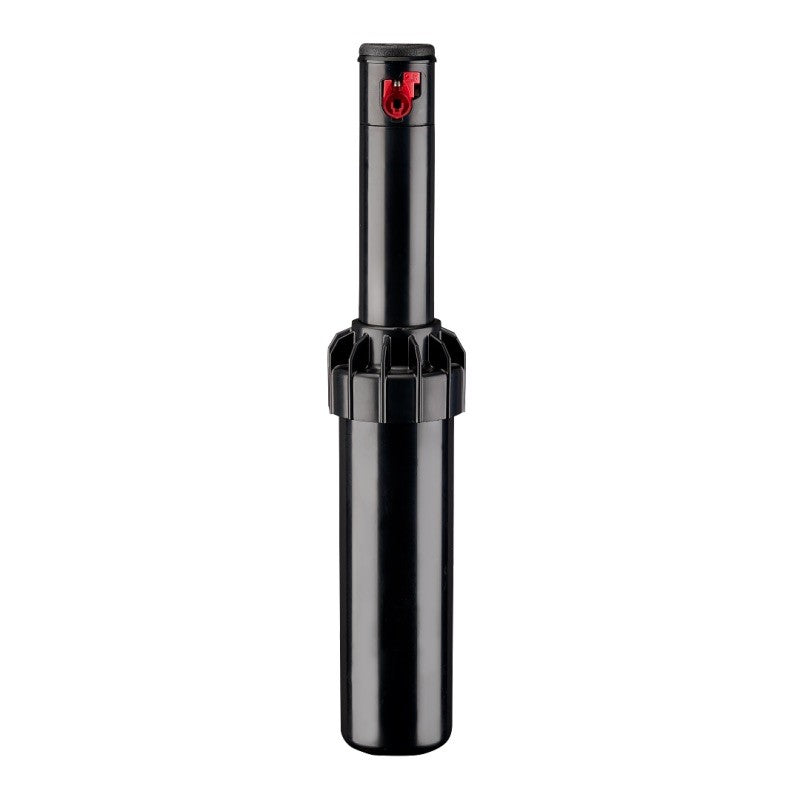

HUNTER PGJ ADJ POP-UP ROTOR 100MM

100 mm gear-driven rotor designed for small residential and light commercial irrigation zones, delivering efficient rotary watering with adjustable arc (40°–360°) and multiple nozzle options.

Short-radius pop-up rotor sprinkler built to bring the efficiency of larger rotors into smaller landscaped areas where spray heads are typically used.

It provides uniform water distribution, lower runoff, and better efficiency compared to traditional spray heads. The PGJ-04 features a durable rubber cover, easy top adjustment, and interchangeable nozzles to match different flow and coverage requirements.

It is ideal for lawns, small gardens, narrow strips, and mixed irrigation zones, and can be paired with larger rotors in the same system for consistent precipitation rates.

Features

• Adjustable arc: 40° to 360°
• Pop-up height: 100 mm (4")
• 8 interchangeable nozzles for flexibility
• QuickCheck™ arc adjustment system (easy top adjustment)
• Factory-installed nozzle (typically size 2.0)
• Rubber cover for safety and durability
• Compact rotor design replaces spray heads for efficiency
• Water-lubricated gear drive system
• Optional check valve (prevents low-head drainage)
• Designed for residential and light commercial use

Specifications

• Radius: 4.3 to 10.4 m
• Arc: 40° to 360°
• Operating Pressure: 4.1 to 7.0 bar; 410 to 700 kPa
• Precipitation Rate: 15 mm/hr
• Flow: 0.07 to 2.22 m³/hr; 1.2 to 36.0 L/min

Dimensions

• Height: 180.98 mm
• Pop-up Height: 10 cm
• Diameter: 28.58 mm
• Exposed Diameter: 28.58 mm
